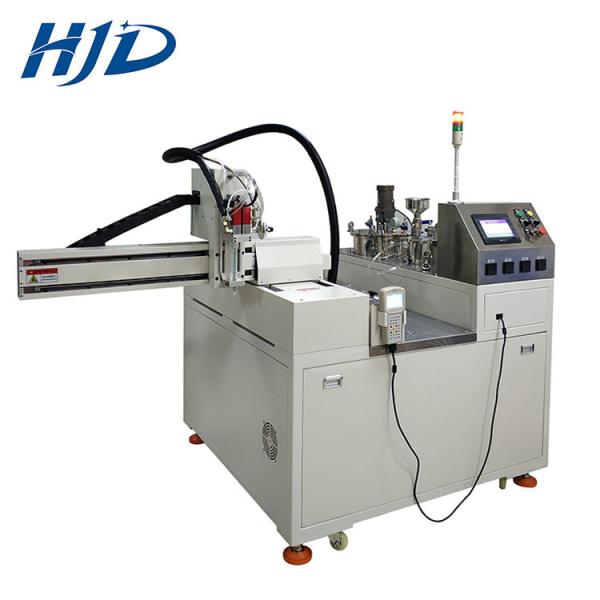

Circuit Board Automatic Glue Dispenser Static / Dynamic Mixing Mode

Brand Name : HJD

Model Number : GM700

Certification : CE

Place of Origin : Shenzhen,Guangdong,China

MOQ : 1 kit

Price : Negotiatable

Payment Terms : T/T, Western Union

Supply Ability : 100 kits/month

Delivery Time : 10~15 working days

Packaging Details : Wooden frame packing

Material : Carbon Steel

Ratio : 1:1 to 10:1

Air pressure : 0.6-0.8 mpa

mixing mode : Static /Dynamic

Tank Capacity : 10L,20L,30L,60L,100L

Power(W) : 1500W

Contact Now

automatic glue dispenser production line for Circuit Board Automatic Glue Dispensing

AB glue potting machine main functions:

Automatic metering,mixing and potting by 3 Axes robots.
Teach Pendant for programming of dots, lines, circles, arcs, and compound arcs.
Automatic alarm sensor for short or full of material .
Gluing speed and time adjustable .
Good Suction Value .
Automatic cleaning.
Material tank stirring (Optional).
Glue tank Vacuum Defoaming and Auto filling(Optional) .
Glue barrels,metering pump,glue pipe can be heating (Optional).
Multi- Needle potting(2-8 points Optional) .
Suitable Material: For waterproof, adhesive, fixed two-component adhesive.
Such as: Silicone, epoxy, polyurethane(PU), etc.

Applications:

LED products ,Electronic components,Crafts

Such as: LED display, Wall washer light, LED bar, LED strip, Ads module, Mutual inductor, Capacitor, Power supply, Transformer, Power module, Ignition coil, Sensor, Photovoltaic module, Photovoltaic inverter. etc

ATTENTION!!!

Please don’t furnishing articles on the robot arm .
Please don’t input AB glue in wrong tanks .

Technical Parameters

Model No.	GM700
working Area	700(X)700(Y)80(Z)
Maximum Speed	500mm(XY )/300mm(Z)/sec
Repeat Accuracy	±0.02mm
Mixing Ratio	100:100-100:10(1:1-10:1)
Metering Precision	±1%
Outflow Speed	0.1g/sec-15g/sec
Mixing Precision	±1%
mixing Mode	Dynamic mixing /Static mixing
Glue Viscosity	Lower than 20000CPS(mPa·s)
Control Mode	PLC + Touch Screen
Control System	Independent R&D
Measuring Pump(optional)	Piston pump/Gear pump/Screw pump
Drive Mode	Stepping motor & sync belt (Optional servo motor & ball screw)
Programming	Teach Pendant for programming
Machine Dimension	1500(L)900(W)1500(H)mm
Working Voltage	AC 220V 50/60HZ
Power Requirement	4.6KW
Air Pressure Requirement	4.5-8KG
Weight	Approx 350 kg
Work Environment	Humidity: 20%~90%RH; Temperature: 0~+40°c
